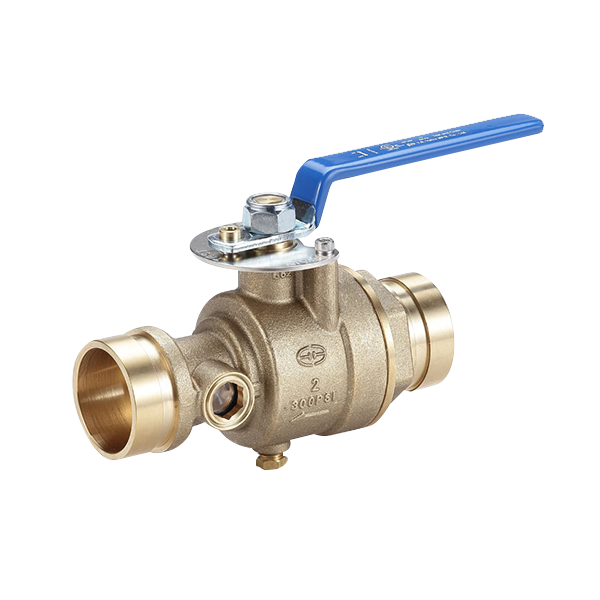

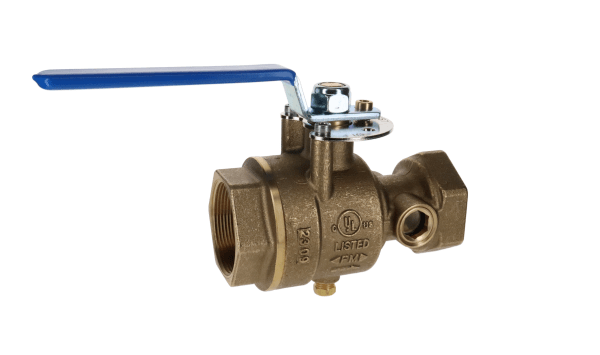

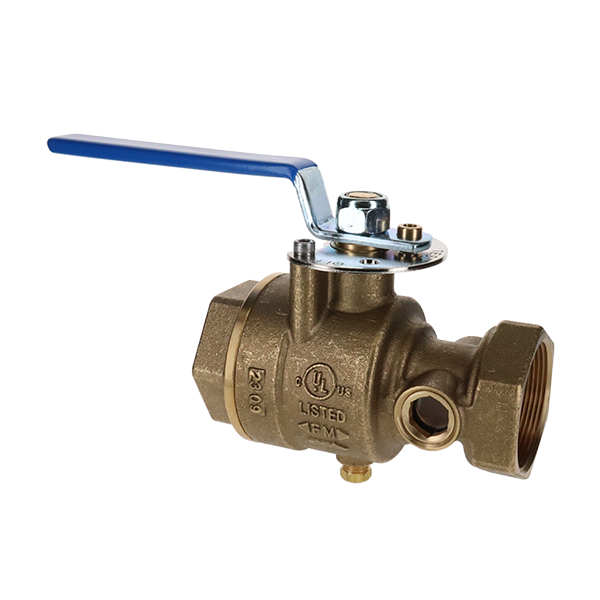

Test & Drain Valves
Test & Drain Valves
Vannes d'essai et de purge
– Heavy-duty brass Construction
– Threaded NPT and GxG connections
– Valve has closed, test and drain or open positions
– Sight glass for visibility on each side-
– 175 PSI Working Pressure
– Vertical and horizontal installations
– Compact design
– Construction en laiton robuste
– Raccords filetés NPT et GxG
– Soupape avec positions fermée, test et vidange ou ouverte
– Voyant de chaque côté
– Pression de service de 175 psi
– Installations verticales et horizontales
– Conception compact
| Threaded / Fileté | ||
|---|---|---|
| Part# | Size / Taille | K factor |
| 8090114 | 1 1/4″ | 5.6K |
| 8090200 | 2″ | 5.6K |
| Grooved Ends / Rainuré | ||
| Part# | Size / Taille | K factor |
| 8091114 | 1 1/4″ | 5.6K |
| 8091112 | 1 1/2″ | 5.6K |
| 8091200 | 2″ | 5.6K |
| 8091201 | 2″ | 14K |
| 8091202 | 2″ | 25K |
