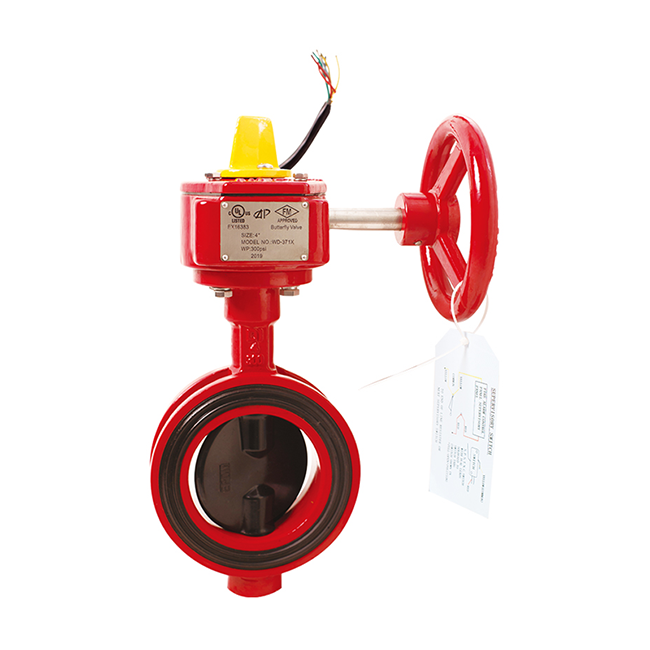

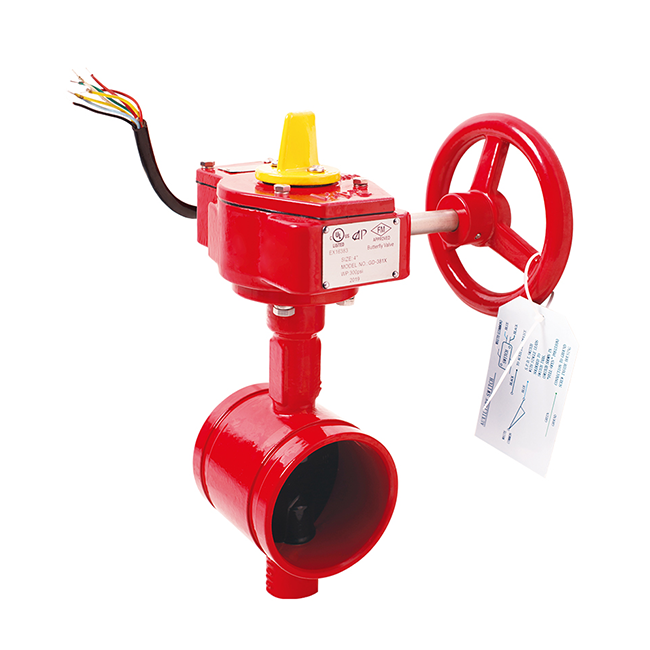

Butterfly Valve Wafer and Grooved
Butterfly Valves
Vannes papillon
– UL, FM, ULC approved
– Slow close butterfly valves with built in tamper switch
– Wafer or Grooved
– Working Pressure: 300 psi
– Maximum test pressure: 600 psi
– Factory installed UL tamper Switch
– Body: Brass & Bronze
– Disc: Brass, Ductile Iron
– EPDM Encapsulated
– Approuvé UL, FM, ULC
– Vannes papillon à fermeture lente avec interrupteur anti-sabotage intégré
– Plaquette ou rainurée
– Pression de service: 300 psi
– Pression maximale d’essai: 600 psi
– Interrupteur anti-sabotage UL installé en usine
– Corps: Laiton et bronze
– Disque: Laiton, fonte ductile
– EPDM encapsulé
| Wafer Plaquette | Grooved Rainuré | Size / Taille |
|---|---|---|
| N/A | 8037200 | 2″ |

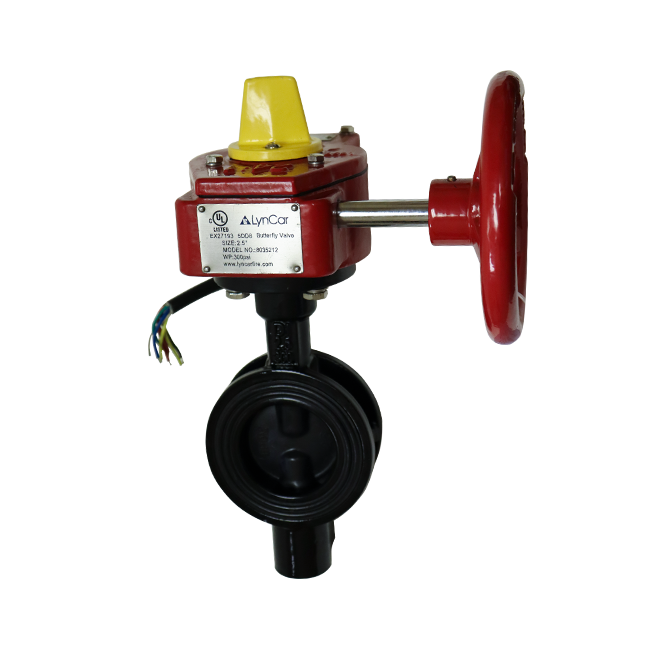

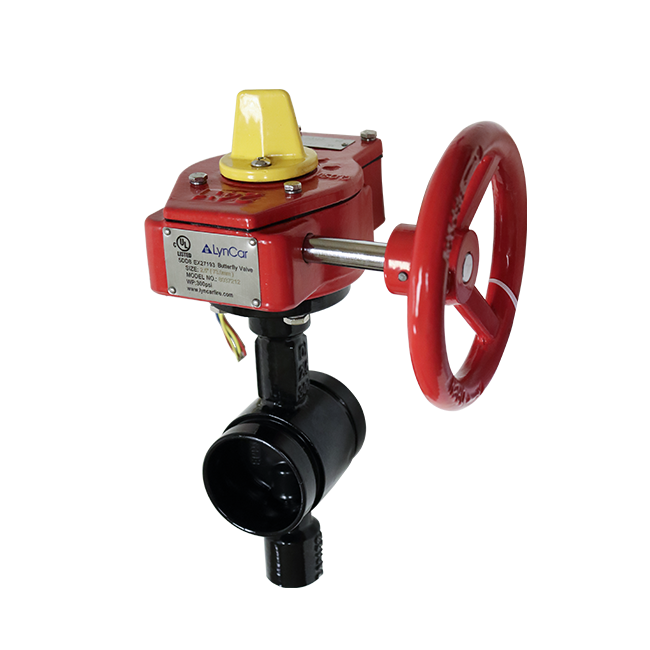

| 8035212 | 8037212 | 2-1/2” |
| 8035300 | 8037300 | 3” |
| 8035400 | 8037400 | 4” |
| 8035600 | 8037600 | 6” |
| 8035800 | 8037800 | 8” |
