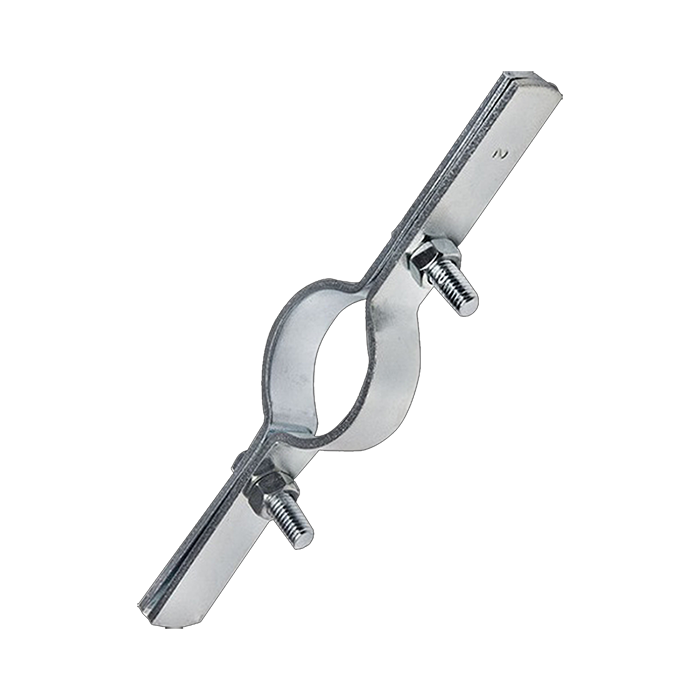

Riser Clamp
Riser Clamp
Collier de fixation pour colonne montante
– Riser clamp to support vertical pipe
– Sold in box quantity only
– Carbon steel, black, or zinc-plated
– Collier de colonne montante pour tuyau vertical
– Vendu en quantité par boîte uniquement
– Acier au carbone, noir ou zingué
| Size IPS / Taille IPS | Black / Black | Zinc / Zinc | Bolt Diameter / Diamètre du boulon | Material size / taille du matériau | Max Load (LBS) / Charge maximale (lb) |
|---|---|---|---|---|---|
| 1/2″IPS | 1095012 | 1095012G | 3/8” | 11/64 x 1 | 220 |
| 3/4″ IPS | 1095034 | 1095034G | 3/8” | 11/64 x 1 | 220 |
| 1″ IPS | 1095100 | 1095100G | 3/8” | 11/64 x 1 | 220 |
| 1 ½” IPS | 1095112 | 1095112G | 3/8” | 11/64 x 1 | 250 |
| 2″ IPS | 1095200 | 1095200G | 3/8” | 11/64 x 1 | 300 |
| 3″ IPS | 1095300 | 1095300G | 3/8” | 1/4 x 1 | 500 |
| 4″ IPS | 1095400 | 1095400G | 1/2” | 1/4 x 1 | 750 |
| 6″ IPS | 1095600 | 1095600G | 1/2” | 1/4 x 1 ½ | 1600 |
| 8″ IPS | 1095800 | 1095800G | 5/8” | 3/8 x 1 ½” | 2500 |
| 10″ IPS | 10951000 | 10951000G | 5/8” | 3/8 x 2 | 2500 |
