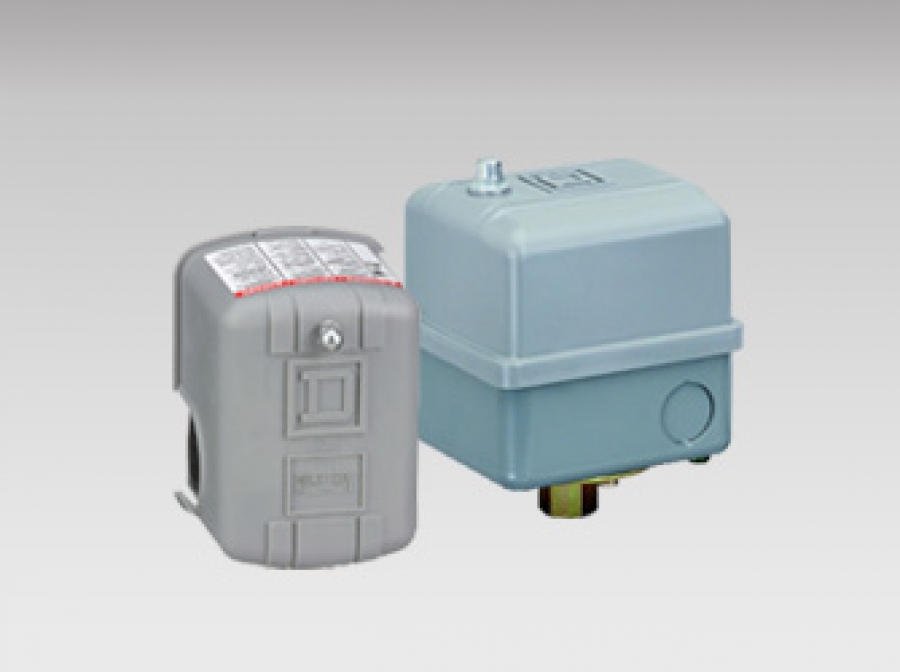

- LynCar stocks a full line of pressure switches from SQUARE D
- This is a superior quality line of pressure switches
- Can be used with either wet or dry system excess pressure pumps and air compressors
- Please only use unloader equipped switches with air compressor applications
| Part# | Square D # | PSI | Case | Unloader |
|---|---|---|---|---|

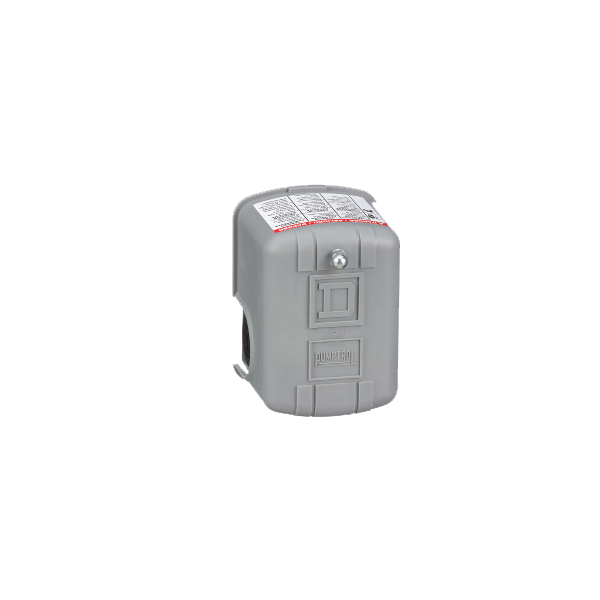

| 406595 | 9013FHG12J52 | 91/125 | non Metallic | No |
| 406594 | 9013FSG2J21 | 30/50 | non Metallic | No |
| 406593 | 9013FSG22J36 | 10/5 reverse | non Metallic | No |

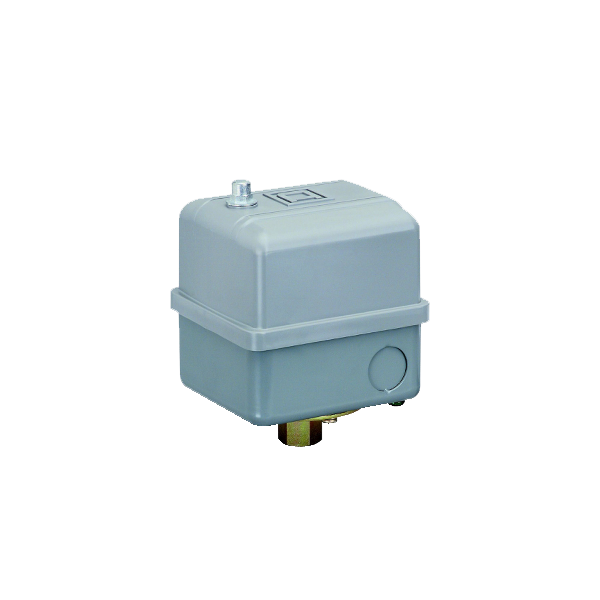

| 406599 | 9013GSG3J21X | 30/50 | NEMA 1 enclosure | Yes |
| 406592 | 9013GHG6J63X | 145 - 175 | NEMA 1 enclosure | Yes |
