- Great for both new and retrofit applications
- Use with suspended ceiling, drywall, institutional, and industrial applications
- Lengths available 28”, 48”, 60”, 72”
- Both 1/2” and 3/4” IPS models

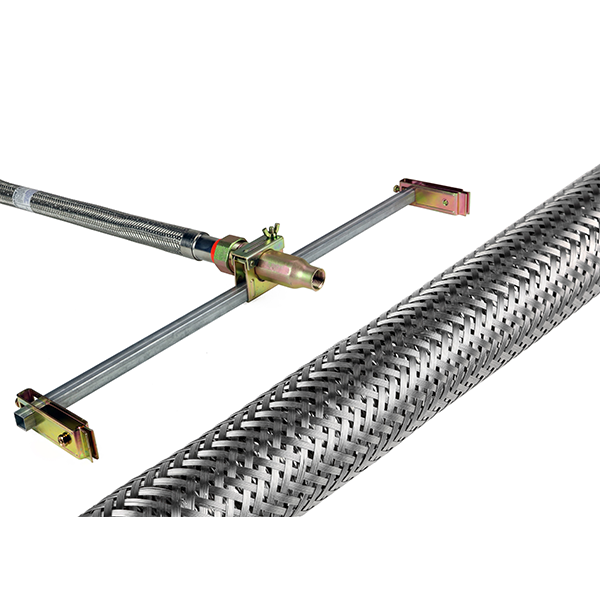

- Stainless tubing (cULus & FM)
- Brackets are pre-assembled and ready to install
- One piece middle bracket – just insert the flex drop
- Rated pressure 175psi
- Use in wet & dry sprinkler systems
- Reduce labour costs
- No need to make sprinkler drops
- Great for congested ceiling spaces
- Hassle free last minute ceiling adjustments

Part#LengthReducer NPT
305031B 28" 1/2”
305048B 48" 1/2”
305060B 60" 1/2”
305072B 72" 1/2”
305032B 28" 3/4”
305049B 48" 3/4”
305061B 60" 3/4”
305073B 72" 3/4”
