- Gasket kits for the repair of Globe's dry pipe valves
Kit Part# | Kit Description | Items included part | Items included description |
---|---|---|---|

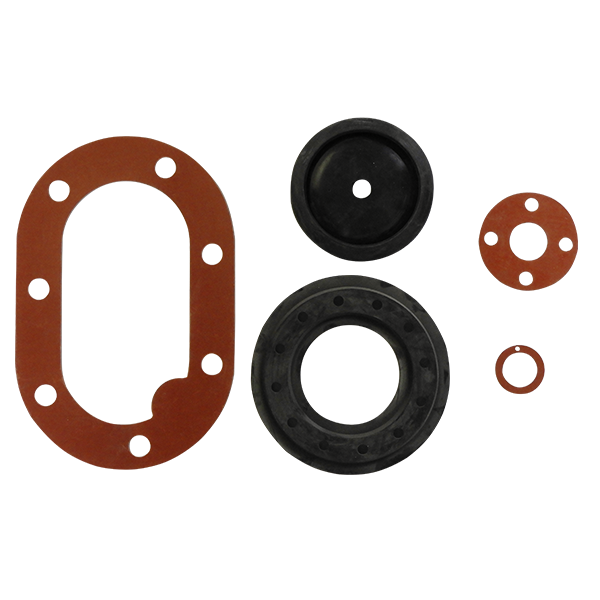

G319750 | 4” dry pipe valve Model F | G300002 | Diaphragm |
G300005 | Rubber seat ring | ||
G300023 | Cover plate gasket | ||
G300030 | Gasket | ||
G300028 | Gasket | ||
G319751 | 4” dry pipe valve Model F-2 | G319754 | Bellofram |
G300005 | Rubber seat ring | ||
G300023 | Cover plate gasket | ||
G300030 | Gasket | ||
G319758 | Shield | ||
G319752 | 4” dry pipe valve Model F-3 and G-3 | G319794 | Bellofram |
G319791 | Rubber seat ring | ||
G300023 | Cover plate gasket | ||
G300030 | Gasket | ||
G319758 | Shield | ||
G319800 | 6” dry pipe valve Model F | G300202 | Diaphragm |
G300205 | Rubber seat ring | ||
G300219 | Cover plate gasket | ||
G300030 | Gasket | ||
G300028 | Gasket | ||
G319801 | 6” dry pipe valve Model F-2 | G319804 | Bellofram |
G300205 | Rubber seat ring | ||
G300219 | Cover plate gasket | ||
G300030 | Gasket | ||
G319808 | Shield | ||
G319803 | 6” dry pipe valve Model F-3 and G-3 | G319844 | Bellofram |
G319841 | Rubber seat ring | ||
G300219 | Cover plate gasket | ||
G300030 | Gasket | ||
G319808 | Shield |
