Potter Flow

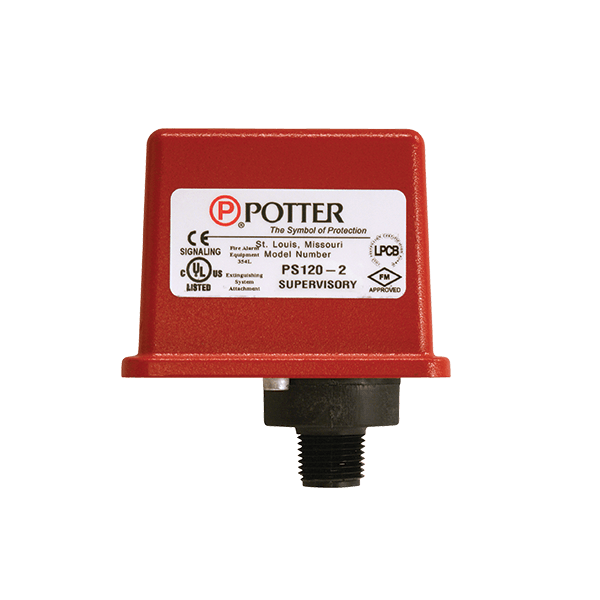

- Pressure actuated switches designed primarily to detect a 10 PSI increase and/or decrease from normal system pressure in automatic fire sprinkler systems
- Typical applications are air pressure supervision in systems with excess pressure
- PS120-1A: Operates on decrease at 110 PSI
- PS120-2A: Operates on increase at 130 PSI and on decrease at 110 PSI
- Pressure Range: 10-175 PSI
| Part# | Potter# | Description |
|---|---|---|
| 4071120 | PS120-1A | Single |
| 4071120 - 2A | PS120-2A | Double |
